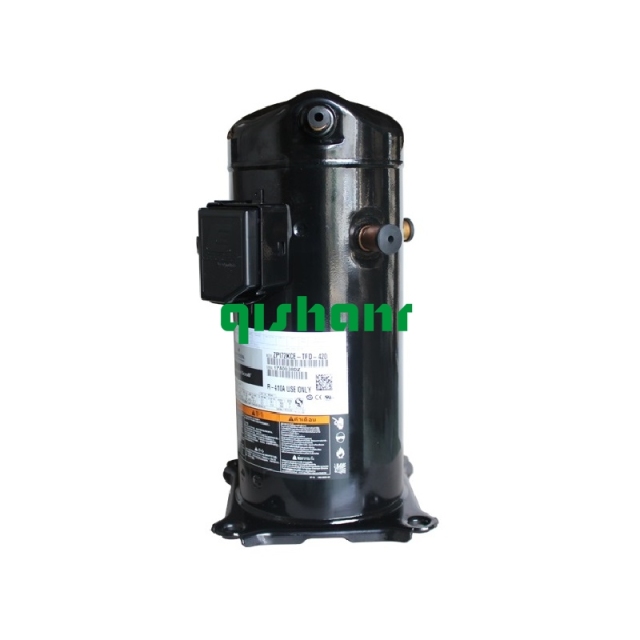

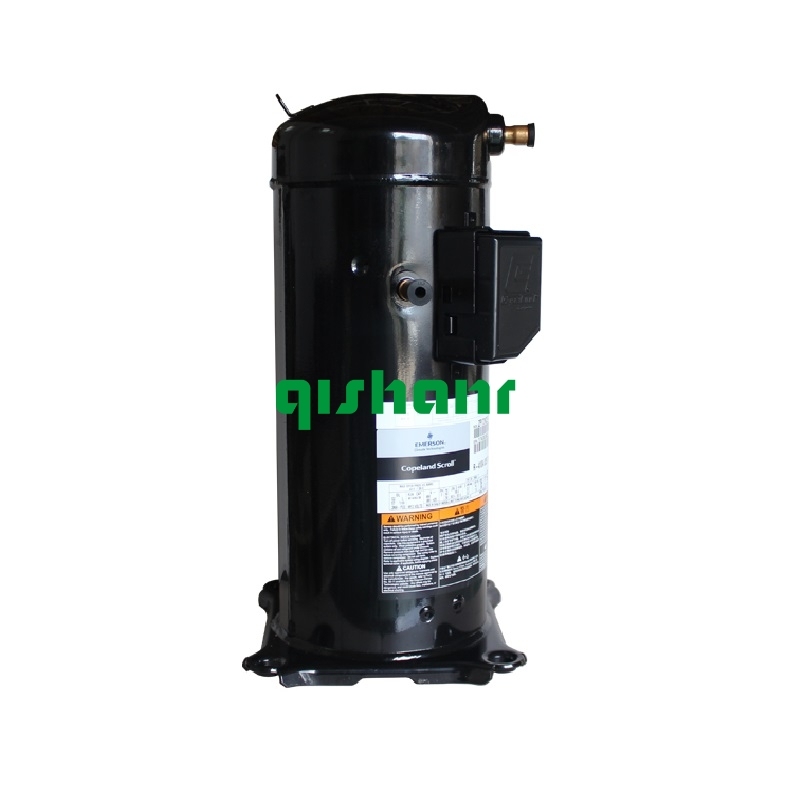

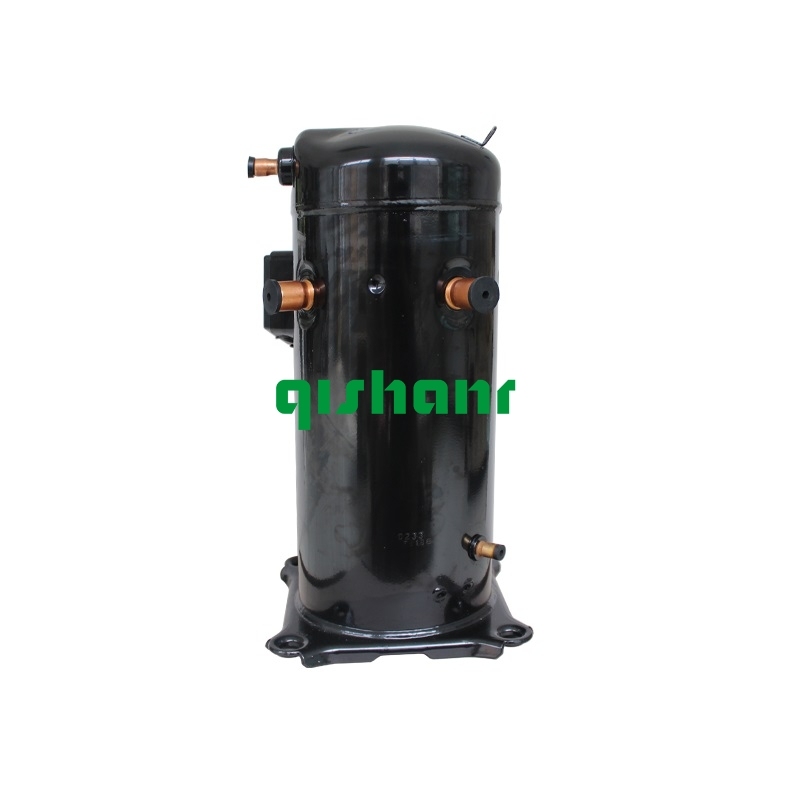

Copeland Vapor Injection Tandem Scroll Digital Compressor ZPJ83KCE-TFD-496

Item No.: ZPJ83KCE-TFD-496
Refrigeration Type : R410A
Cooling Efficiency (EER) : 10.4
Capacity Range (BTU) : 83,400
Voltage : 380-420V ; 60Hz
Phase : 3
Application : Airconditioning
Description

Product Description

Copeland brand compressors is engineered for higher efficiency, lower sound levels, superior durability and unsurpassed reliability. They allow the integration of new and environmentally-friendly refrigerants into your systems, while seamlessly improving efficiency and performance levels.
Copeland Scroll compressors are designed to deliver the highest performance in residential and commercial applications. Thanks to the widest selection of scroll compressors optimized for air conditioning and heating, it has never been easier to match all desired applications with the highest efficiency and reliability.

Product Features

• Highest efficiency:
Highest level of efficiency available on the market, whatever the refrigerant and operating condition
 Large operating envelope:
Large operating envelope that allows medium and low temperature applications to be covered by one single model with condensing limit as low as 5°C
• Multi-refrigerant:
Multi-refrigerant compressor range – one model to cover all standard refrigerants
 Smooth operation:

Option to use 2 and 3 cylinder models with additional Demand Cooling function in order to achieve extended low temperature operating envelope without any superheat restriction

Product Specification

Model

ZPJ83KCE-TFD-496

Nominal (HP)

7.0

Refrigeration Type

R410A

Capacity

(W)

24400

(Btu/h)

83400

Voltage

380-420V ; 60Hz

Input Power (W)

8060

Current (A)

12.3

COP (W/W)

3.03

EER (Btu/Wh)

10.4

Displacement (cc/ Rev.)

77.2

Oil Quantity (l)

1.77

Net Weight (Kg)

40.8

LRA (A)

100

Sound Pressure (dBA)

78.0

Application

Air Conditioning
