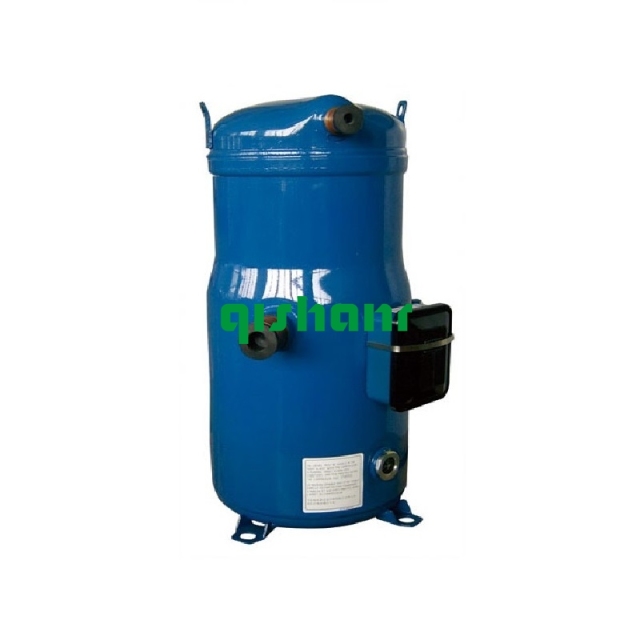

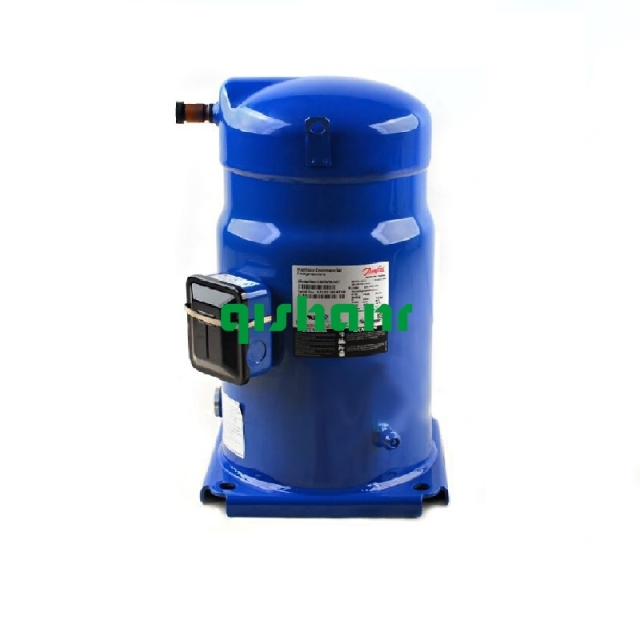

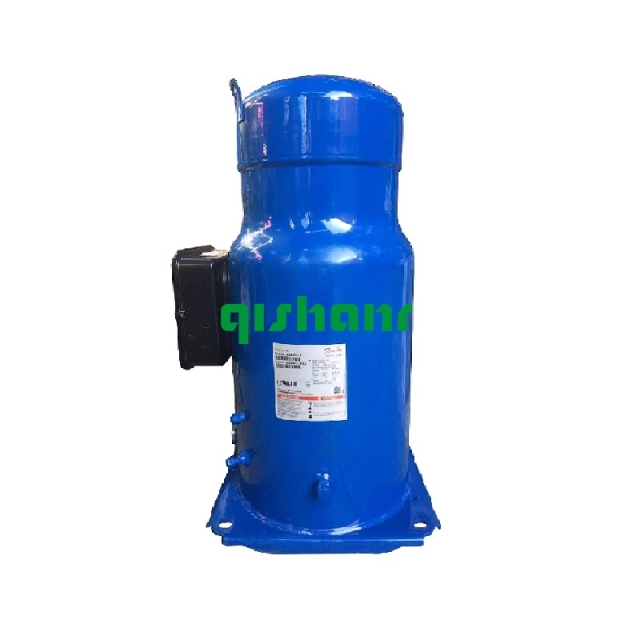

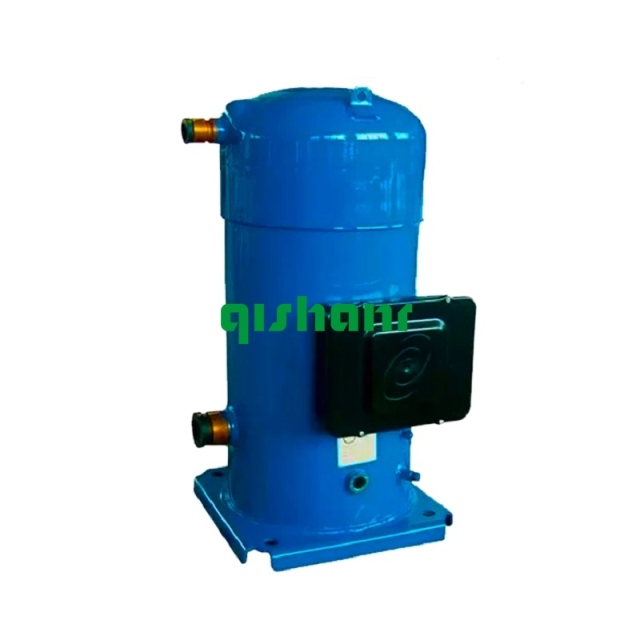

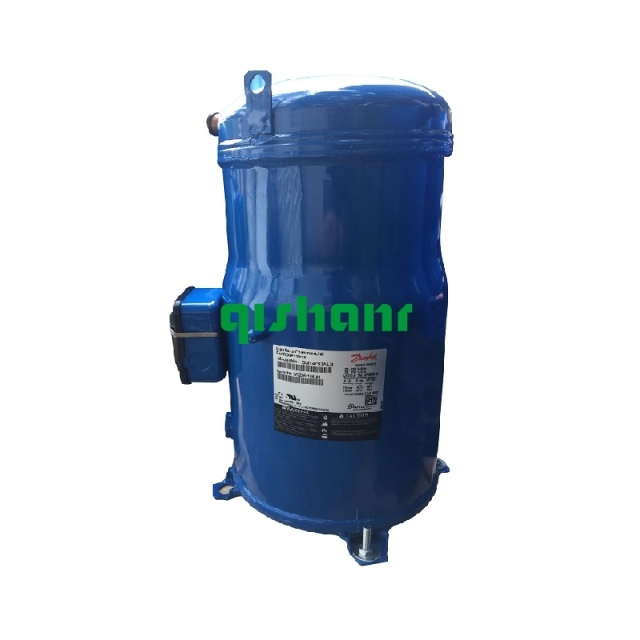

Single Danfoss Scroll Compressor SM185S4VC

Item No.: SM185S4VC
Refrigerant: R22
Nominal tons 60Hz (TR): 15
Voltage: 380-400V,50 Hz ; 460V,60 Hz
Phase : 3
Application: Air Conditioning
Description

Product Description

Danfoss Commercial Compressors is a worldwide manufacturer of compressors and condensing units for refrigeration and HVAC applications. With a wide range of high quality and innovative products we help your company to find the best possible energy efficient solution that respects the environment and reduces total life cycle costs.
Danfoss has 40 years of experience within the development of hermetic compressors which has brought us amongst the global leaders in our business,and positioned us as distinct variable speed technology specialists. Today they operate from engineering and manufacturing facilities spread across three continents.
Danfoss products can be found in a variety of applications such as rooftops,chillers,residential air conditioners,heatpumps,coldrooms,supermarkets,milk tank cooling and industrial processes.

Product Features

• Gas circulation, motor cooling and oil behaviour are improved by a new patented motor cap design.
• Part protection and assembly reduces internal leaks and increases life durability
• Improved part isolation reduces greatly acoustic levels.
• Gas intake design induces higher resistance to liquid slugging.

Product Specification

Model

SM185S4VC
Refrigerant R22

Voltage

380-400V,50 Hz ; 460V,60 Hz

Nominal Cap. 60Hz (TR) 15
Capacity  W 54300
Btu/h 185400

Power Input (Kw)

16.22

COP (W/W)

3.35

EER (Btu/h/W)

11.4

Swept Volume (cm³/rev) 249.9
Displacement (m³/h) 52.48
Oil Charge (dm³) 6.2
Net Weight (kg) 100

Application

Air Conditioning
