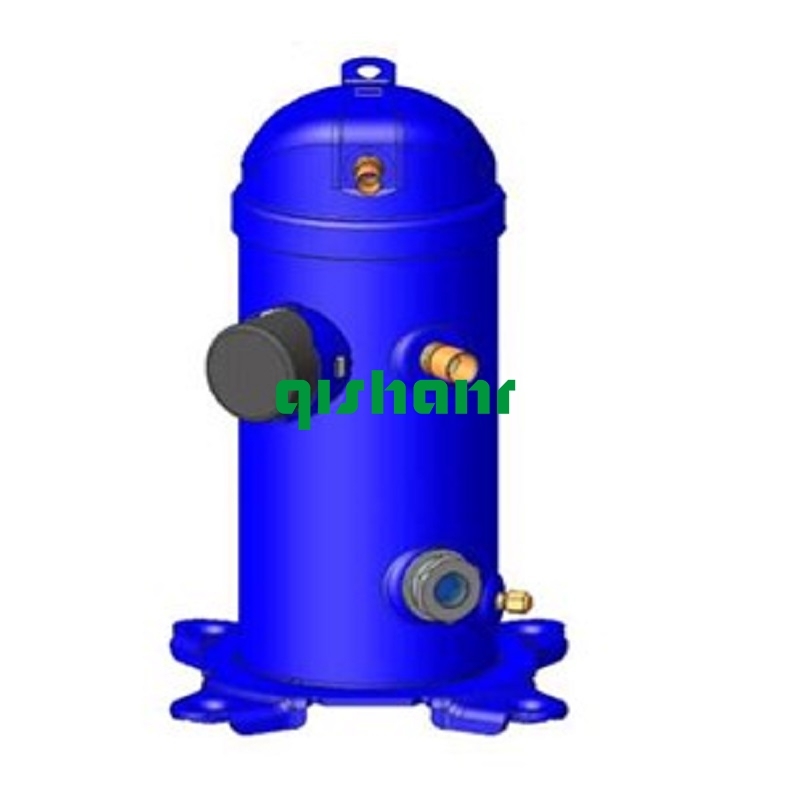

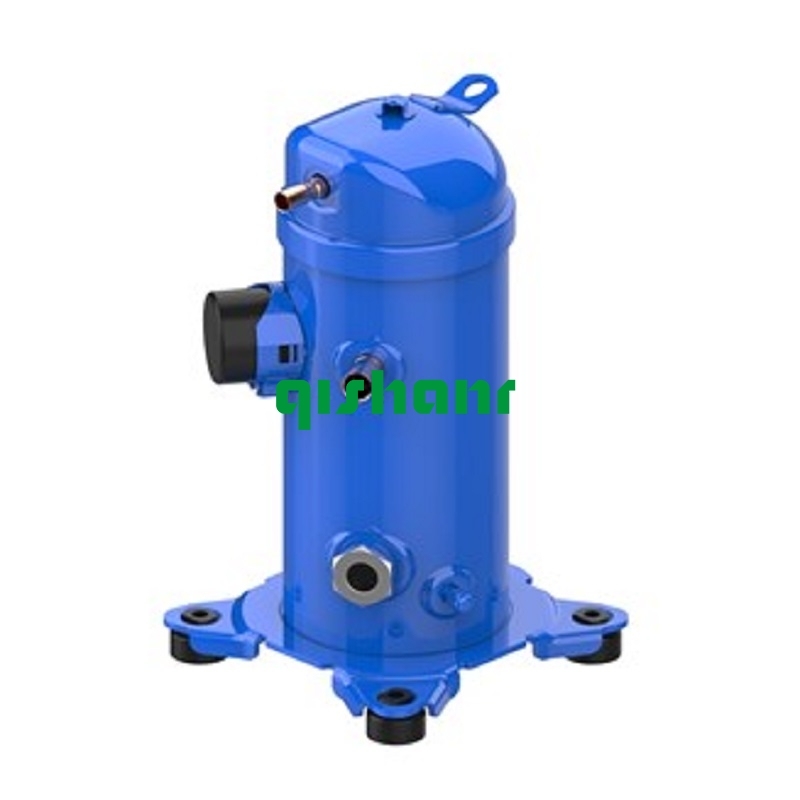

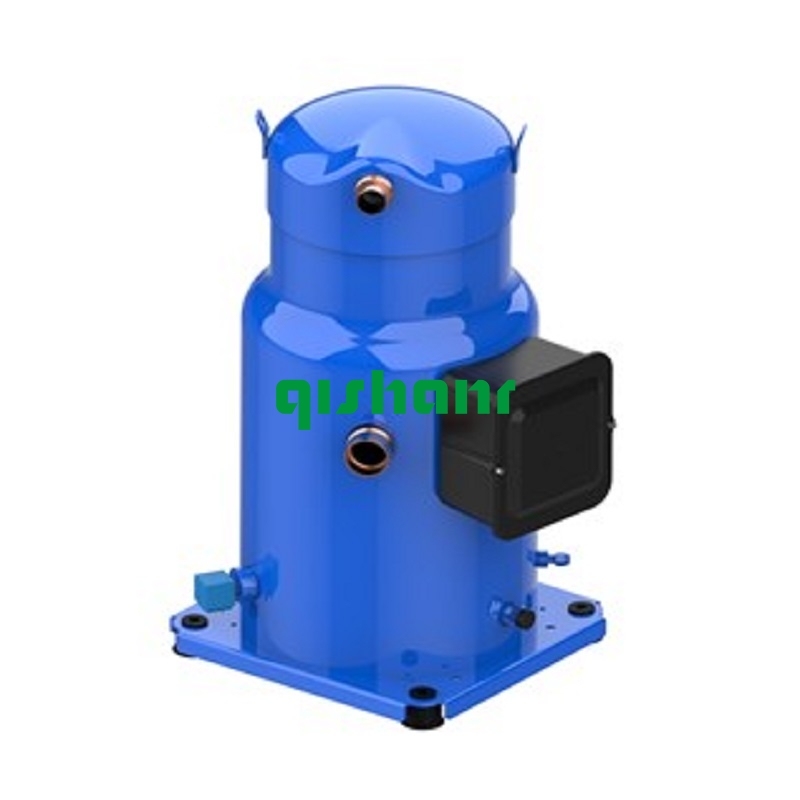

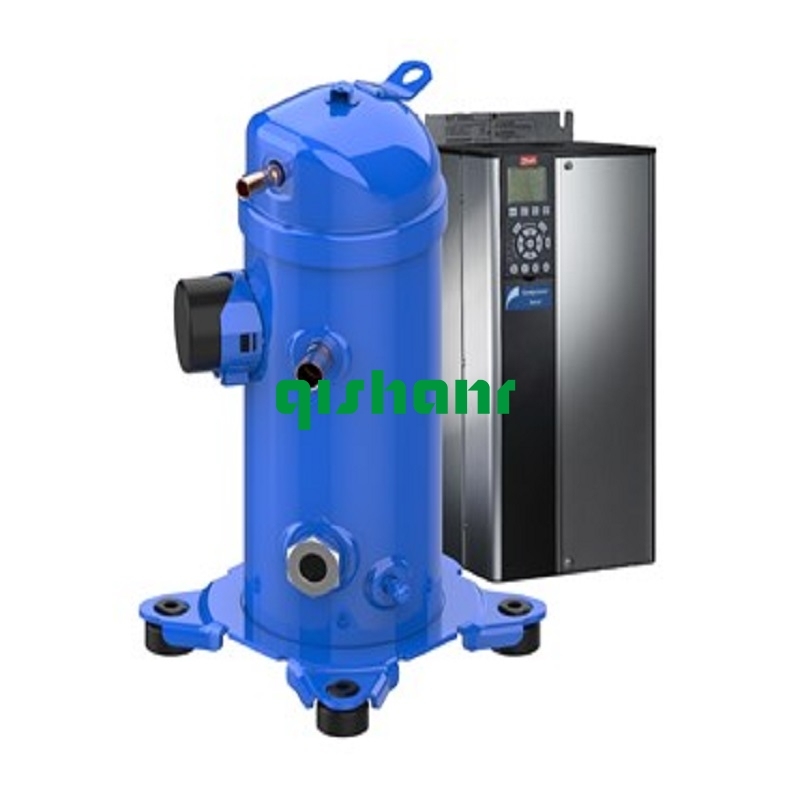

Danfoss MLZ and MLM scroll compressors for medium temperature and LLZ scroll compressors for low temperature applications are dedicated to commercial and light commercial refrigeration applications. Engineered for refrigeration, this family of compressors offers cooling capacity from 1 to 6 tons nominal capacity at common voltages and frequencies.
Thanks to their unique scroll design, MLZ, MLM, and LLZ scroll compressors deliver a number of powerful advantages. With their high-efficiency motor and optimized design, these compressors reduce energy costs, deliver high-capacity cooling, and ensure an optimized pressure ratio.
Brazed and rotolock connections are available for most compressors.
• Gas circulation, motor cooling and oil behaviour are improved by a new patented motor cap design.
• Part protection and assembly reduces internal leaks and increases life durability
• Improved part isolation reduces greatly acoustic levels.
• Gas intake design induces higher resistance to liquid slugging.
|
Model |
|
|||||||||
| Refrigerant | R404A,R507,R134A,R22 | |||||||||
|
Voltage |
220-240V,50Hz |
|||||||||
| Nominal Cap (Hp) | 3 | |||||||||
| Capacity | W | 5600 | ||||||||
| Btu/h | 19000 | |||||||||
|
Power Input (Kw) |
2.36 |
|||||||||
| COP (W/W) |
2.36 |
|||||||||
|
EER (Btu/h/W) |
8.07 |
|||||||||
| Swept Volume (cm³/rev) | 46.2 | |||||||||
| Displacement (m³/h) | 9.7 | |||||||||
| Oil Charge (L) | 1.1 | |||||||||
| Net Weight (kg) | 31 | |||||||||
|
Application |
Air Conditioning |
|||||||||
