| Daikin Scroll Compressor R22 | ||||||||||
| OUTPUT (HP) | POWER SOURCE | MODEL | PERFORMANCE | TUBE CONNECTIONS | ||||||
| CAPACITY | INPUT | CUR. | COP | DISP. | SUCT. | DIS. | ||||
| KW | BTU/H | KW | A | W/W | cm3/r | mm | mm | |||
| 3 | 220V/50Hz,1PH | JT90BCBV1L | 8.54 | 29100 | 2.87 | 13.1 | 2.98 | 48.6 | Φ22.2 | Φ9.5 |
| 3 | JT95BCBV1L | 9.03 | 30800 | 2.98 | 13.7 | 3.03 | 51.2 | Φ22.2 | Φ9.5 | |
| 3 | JT100BCBV1L | 9.51 | 32400 | 3.14 | 14.5 | 3.03 | 53.9 | Φ22.2 | Φ9.5 | |
| 3 | JT90BHBV1L | 8.55 | 29200 | 2.67 | 12.4 | 3.2 | 48.2 | Φ22.2 | Φ9.5 | |
| 3 | JT90BHBV1L | 9.2 | 31400 | 2.88 | 13.5 | 3.2 | 51.8 | Φ22.2 | Φ9.5 | |
| 3 | 380V/50Hz,3PH | JT90BCBY1L | 8.54 | 29100 | 2.75 | 4.8 | 3.11 | 48.6 | Φ19.1 | Φ9.5 |
| 3 | JT95BCBY1L | 9.03 | 30800 | 2.87 | 4.9 | 3.15 | 51.2 | Φ19.1 | Φ9.5 | |
| 3 | JT90BHBY1L | 8.55 | 29200 | 2.6 | 4.6 | 3.29 | 48.2 | Φ19.1 | Φ9.5 | |

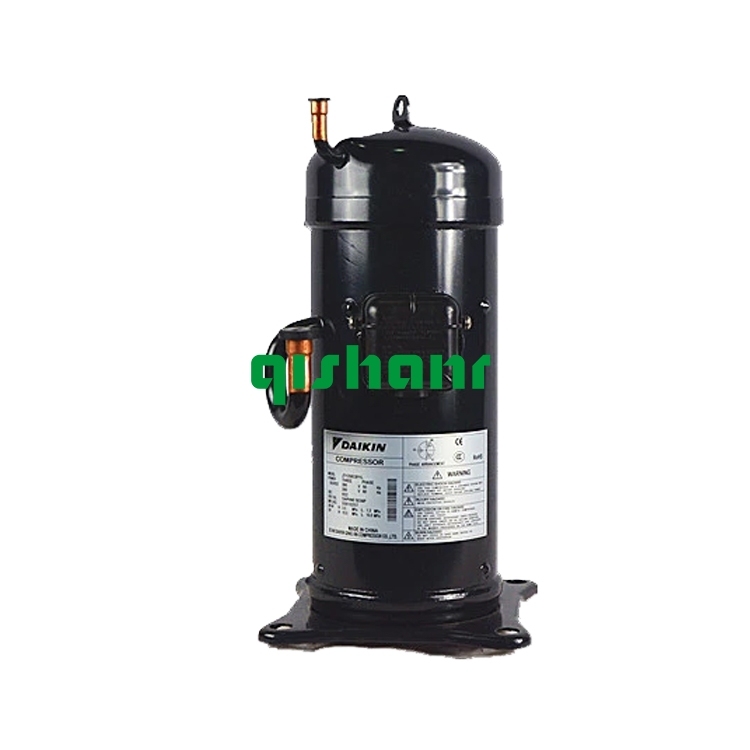

| 3 | JT95BHBY1L | 9.2 | 31400 | 2.8 | 4.8 | 3.29 | 51.8 | Φ19.1 | Φ9.5 | |
| 4.5 | JT140BCBY1L | 13.2 | 45000 | 4.11 | 7.6 | 3.22 | 74.1 | Φ19.1 | Φ9.5 | |
| 5 | JT150BCBY1L | 14 | 47800 | 4.42 | 8.1 | 3.17 | 78.1 | Φ19.1 | Φ9.5 | |
| 4 | 380V/50/60Hz,3PH | JT125BC-Y1L | 11.9 | 40600 | 3.8 | 7 | 3.13 | 67 | Φ19.1 | Φ12.7 |
| 14.2 | 48500 | 4.53 | 7.4 | 3.13 | ||||||
| JT125BCBY1L | 11.9 | 40600 | 3.8 | 7 | 3.13 | 67 | Φ19.1 | Φ12.7 | ||
| 14.2 | 48500 | 4.53 | 7.4 | 3.13 | ||||||
| 5 | JT160BC-Y1L | 15 | 51200 | 4.66 | 8.6 | 3.22 | 83.1 | Φ19.1 | Φ12.7 | |
| 17.9 | 61100 | 5.54 | 9.2 | 3.23 | ||||||
| JT160BCBY1L | 15 | 51200 | 4.66 | 8.6 | 3.22 | 83.1 | Φ19.1 | Φ12.7 | ||
| 17.9 | 61100 | 5.54 | 9.2 | 3.23 | ||||||
