Cubigel has a robust portfolio with fixed and variable speed compressors that are approved for natural and transitory refrigerants utilization and may be applied in residential or commercial refrigeration.
R134a, M/HBP | ||||
Model | Displ. (cm³) | Capacity(+7.2° C ) | Voltage | Starting |
GL90TG | 8.85 | 790W | 200-220V,50Hz/220-230V,60Hz | CSIR |

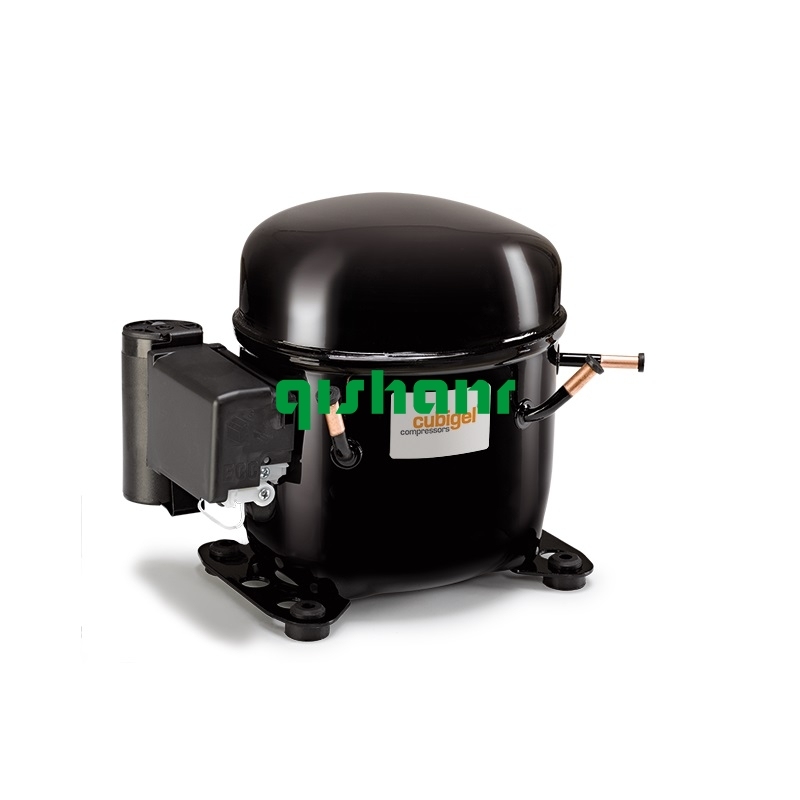

GP12TG | 12.05 | 1069W | 200-220V,50Hz/220-230V,60Hz | CSIR |
GP14TB | 14.17 | 1198W | 220-240V,50Hz | CSIR |
GP14TG | 14.17 | 1198W | 200-220V,50Hz/220-230V,60Hz | CSIR |
GP16TB | 16.15 | 1442W | 220-240V,50Hz | CSIR |
GP16TG | 16.15 | 1442W | 200-220V,50Hz/220-230V,60Hz | CSIR |
GPT18RA | 18.00 | 1774W | 220-240V,50Hz | CSR |
GX23TG | 23.20 | 2070W | 200-220V,50Hz/220-230V,60Hz | CSIR |
GX23TB | 23.20 | 2070W | 220-240V,50Hz | CSIR |
R404A, LBP | ||||
Model | Displ. (cm³) | Capacity(-23.3° C ) | Voltage | Starting |
MLY90LA | 9.09 | 459W | 220-240V,50Hz | CSIR |
MPT12LA | 12.1 | 662W | 220-240V,50Hz | CSR |
MPT14LA | 14.32 | 779W | 220-240V,50Hz | CSR |
MPT16LA | 16.15 | 890W | 220-240V,50Hz | CSR |
MX21FBa | 20.72 | 936W | 220-240V,50Hz | CSR |
MX23FBa | 23.2 | 1064W | 220-240V,50Hz | CSR |
MS26FB | 25.93 | 1220W | 220-240V,50Hz | CSR |
MS34FB | 34.42 | 1628W | 220-240V,50Hz | CSR |
R404A, M/HBP | ||||
Model | Displ. (cm³) | Capacity(+7.2° C ) | Voltage | Starting |
ML80TG | 7.57 | 1105W | 200-220/230V,50/60Hz | CSIR |
ML90TG | 8.85 | 1326W | 200-220/230V,50/60Hz | CSIR |
MP12TG | 12.05 | 1838W | 200-220/220-230V,50/60Hz | CSR |
MPT12RA | 12.1 | 1960W | 220-240V,50Hz | CSR |
MX16TBa | 16.03 | 2361W | 220-240V,50Hz | CSR |
MX18TGa | 18.4 | 2710W | 200-220/220-230V,50/60Hz | CSR |
MX21TG | 20.72 | 3047W | 200-220/220-230V,50/60Hz | CSR |
MS26TG | 25.93 | 4012W | 200-220/220-230V,50/60Hz | CSR |
MS34TG | 34.42 | 5292W | 200-220/230V,50/60Hz | CSR |
R290, LBP | ||||
Model | Displ. (cm³) | Capacity(-23.3° C ) | Voltage | Starting |
NLY60LA | 5.98 | 267W | 220-240V,50Hz | CSIR |
NLY80LA | 8.1 | 356W | 220-240V,50Hz | CSIR |
NLY90LA | 9.09 | 413W | 220-240V,50Hz | CSIR |
NPY12LA | 12.1 | 541W | 220-240V,50Hz | CSIR |
NPY14LA | 14.32 | 651W | 220-240V,50Hz | CSR |
NPT16LA | 16.15 | 756W | 220-240V,50Hz | CSR |
NX21FBa | 20.72 | 907W | 220-240V,50Hz | CSR |
NX23FBa | 23.2 | 1003W | 220-240V,50Hz | CSR |
R290, M/HBP | ||||
Model | Displ. (cm³) | Capacity(+7.2° C ) | Voltage | Starting |
NLY80RA | 8.1 | 1111W | 220-240V,50Hz | CSIR |
NLY90RA | 9.09 | 1256W | 220-240V,50Hz | CSIR |
