ZX(I) compressors are used within Copeland™ ZX outdoor refrigeration units for low-temperature applications. They have been optimized in their design to perfectly fit frozen food application requirements. Thanks to their scroll compliance mechanism, these scroll compressors feature particularly high tolerance to liquid slugging.
• High capacity vapor injection technology on ZXI models, for improved efficiency
• Optional sound shell allowing up to 10 dBA sound attenuation
|
Model |

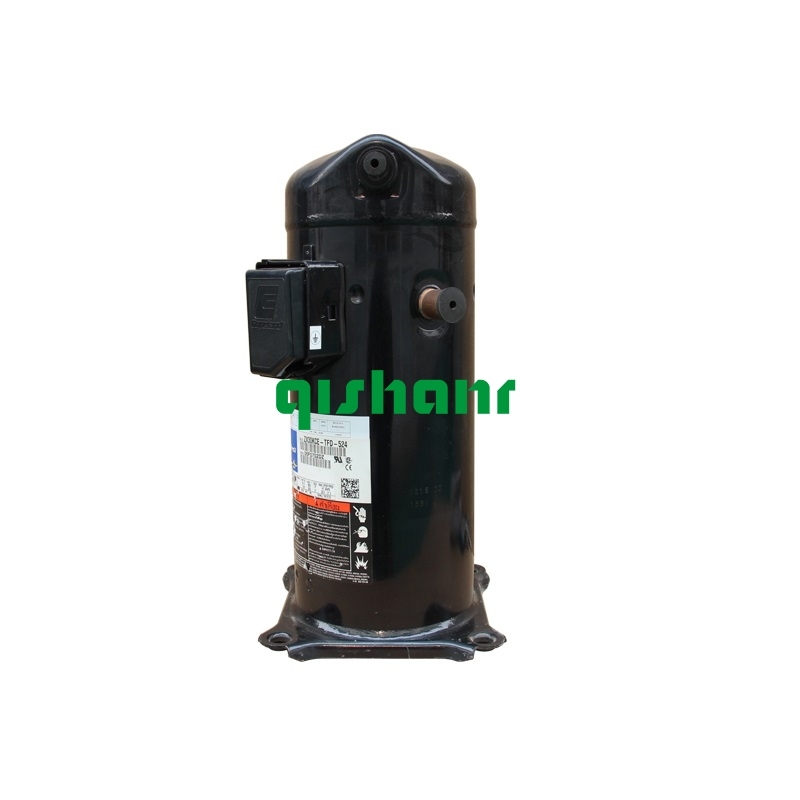

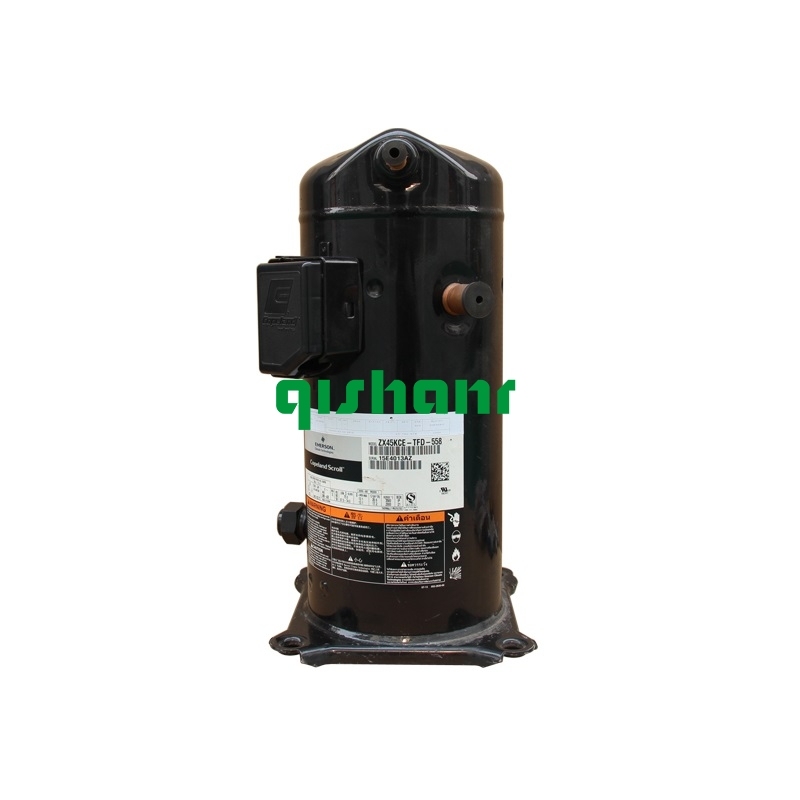

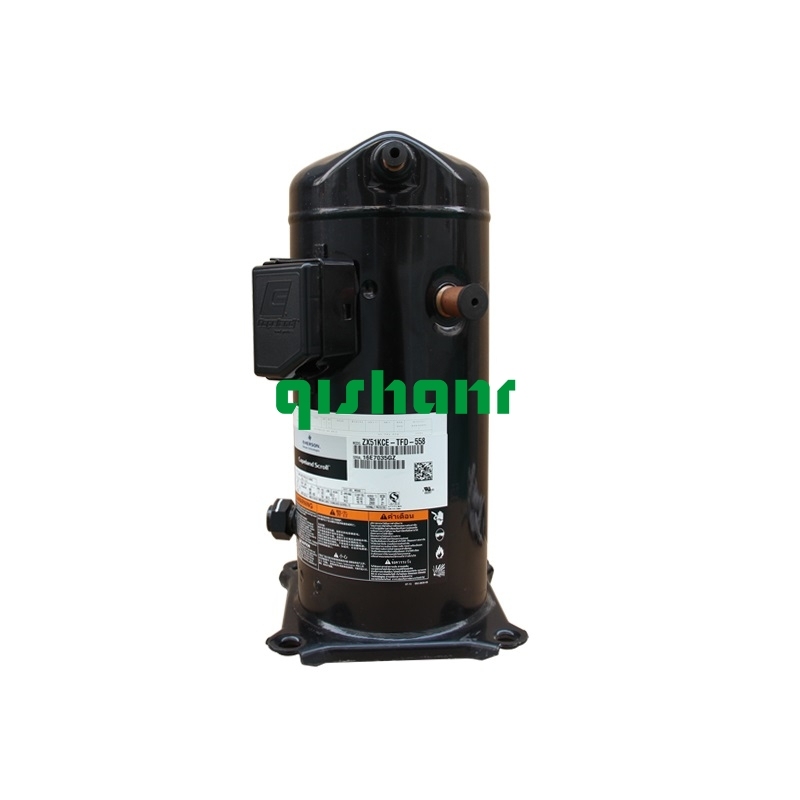

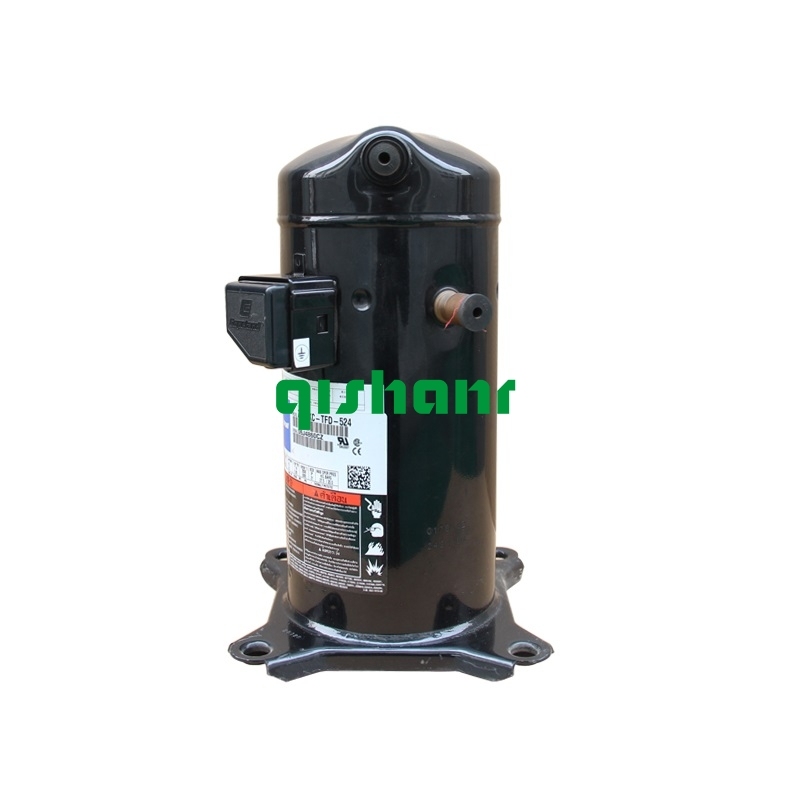

ZXI09KCE-TFD-687 |
|
|
Refrigerants compatibilities |
R-404A, R-407A, R-407F, R-448A, R-449A | |
|
Voltages |
380-420V , 50 Hz,; |
|
|
Cooling Capacity (kW) |
5.62 |
|
|
Power Input (kW) |
2.14 |
|
|
COP (W/W) |
2.62 | |
|
Displacement (m³/h) |
8.03 |
|
|
|
W. | 216 |
| L. | 204 | |
| H. | 390 | |
|
Net Weight (Kg) |
22.2 |
|
|
Low / High Side PS ( bar(g)) |
21 / 28.8 | |
|
Maximum Operating Current (A) |
6.7 |
|
|
Application |
Supermarket， |
|
