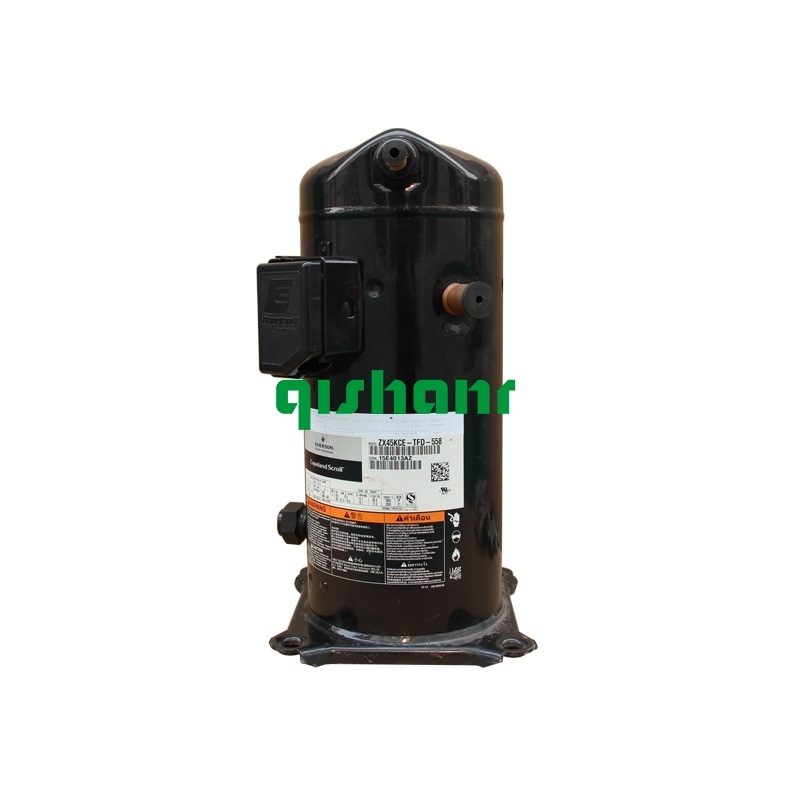

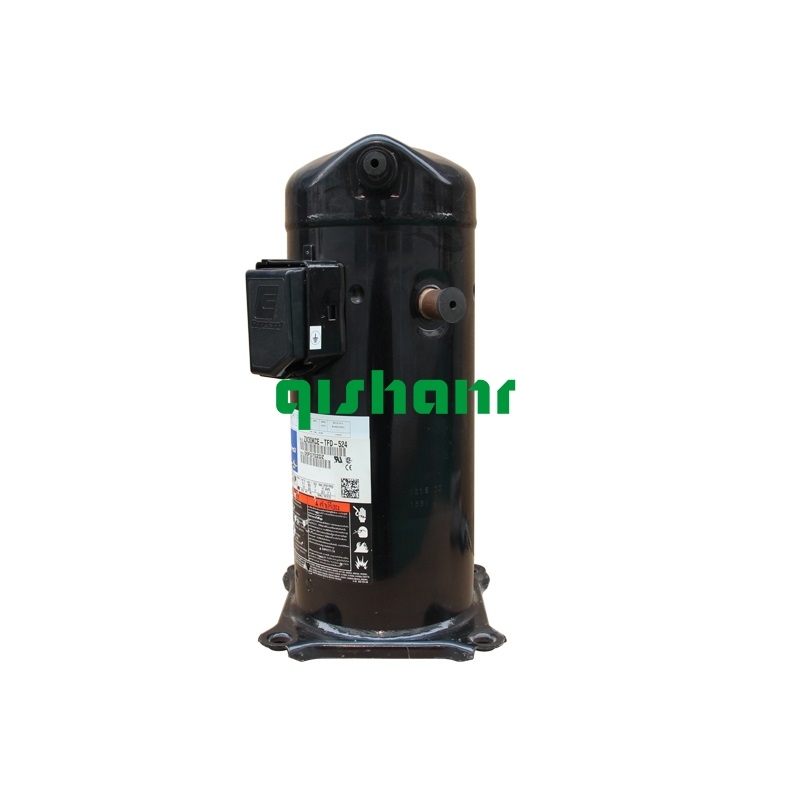

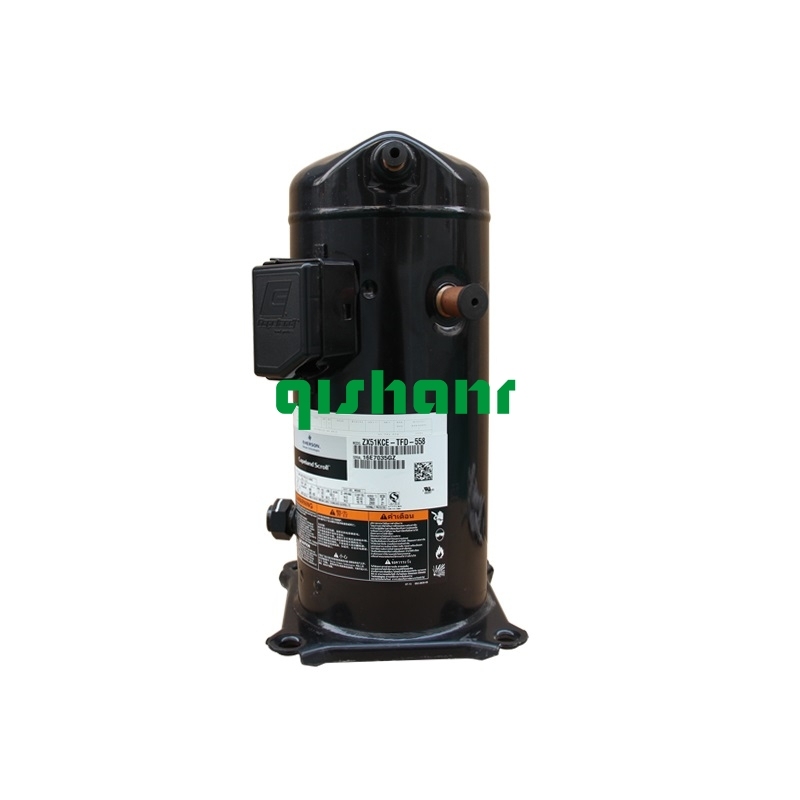

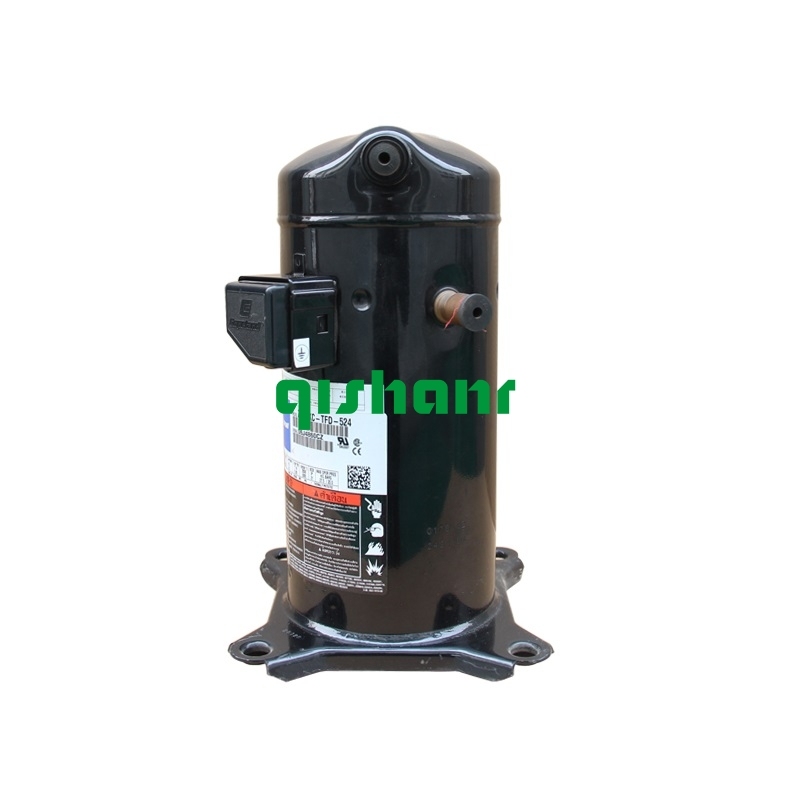

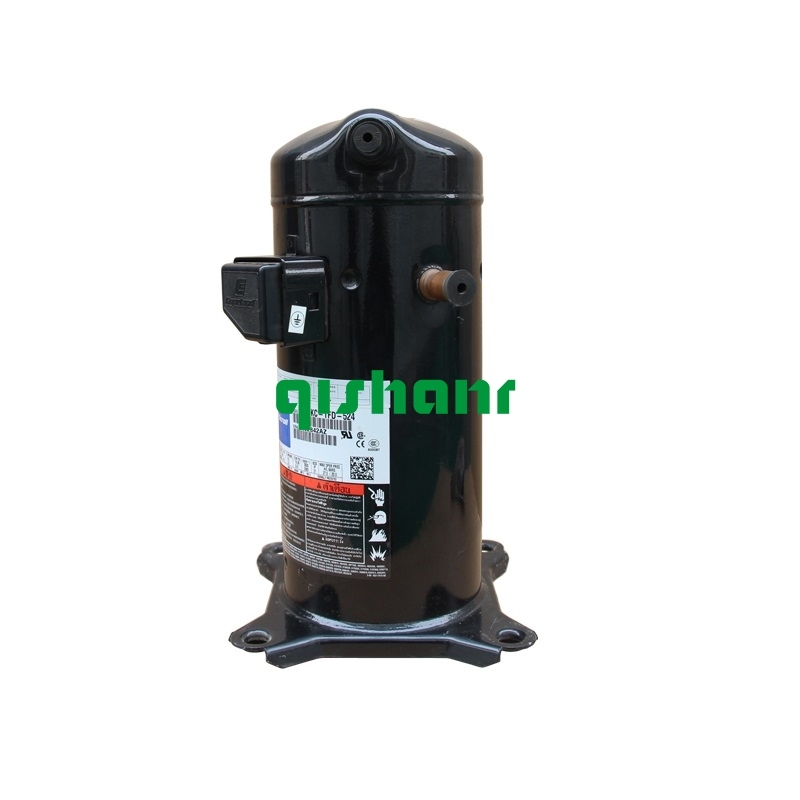

Copeland Scroll Compressor ZX45KCE-TFD-558

Item No.: ZX45KCE-TFD-558
Refrigerants compatibilities:R-134A, R-407A, R-407F, R-448A, R-404A
                                                R-449A, R-450A, R-513A, R-407C
Cooling Capacity:9.76 kW
Voltages:380-420 V ,50 Hz;
                  460 V ,60 Hz
Phase:3
Description

Product Description

ZX(I) compressors are used within Copeland™ ZX outdoor refrigeration units for low-temperature applications. They have been optimized in their design to perfectly fit frozen food application requirements. Thanks to their scroll compliance mechanism, these scroll compressors feature particularly high tolerance to liquid slugging.

Product Features

• High capacity vapor injection technology on ZXI models, for improved efficiency
• Optional sound shell allowing up to 10 dBA sound attenuation

Product Specification

Model

ZX45KCE-TFD-558

Refrigerants compatibilities

R-134A, R-407A, R-407F, R-448A, R-404A
R-449A, R-450A, R-513A, R-407C

Voltages

380-420V , 50 Hz,;
460V , 60 Hz

Cooling Capacity (kW)

9.76

Power Input (kW)

4.38

COP (W/W)

2.23

Displacement (m³/h)

17.1


Overall Dimension (mm)

W. 250
L. 246
H. 438

Net Weight (Kg)

36.3

Low / High Side PS ( bar(g))

21 / 28.8

Maximum Operating Current (A)

13.1

Sound Power (dBA) 76

Application

Supermarket,
Reach-In/Walk-in Freezer,
Environmental Chambers,
Industrial/Medical,
Transportation
