Copeland brand compressors is engineered for higher efficiency, lower sound levels, superior durability and unsurpassed reliability. They allow the integration of new and environmentally-friendly refrigerants into your systems, while seamlessly improving efficiency and performance levels.

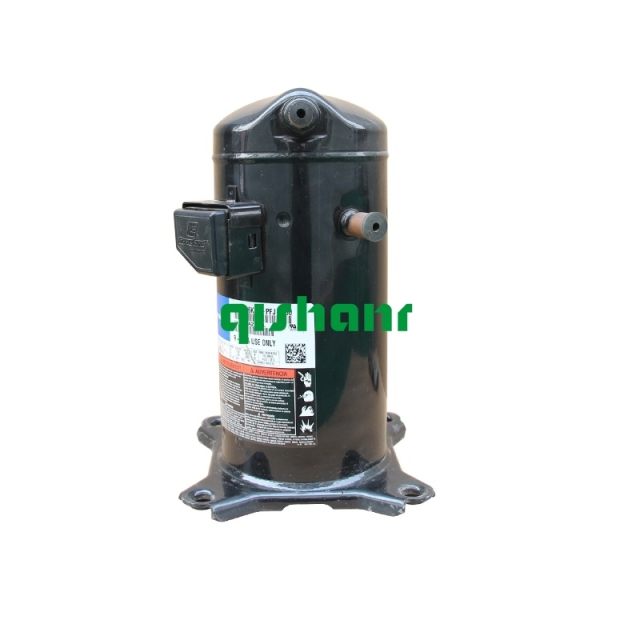

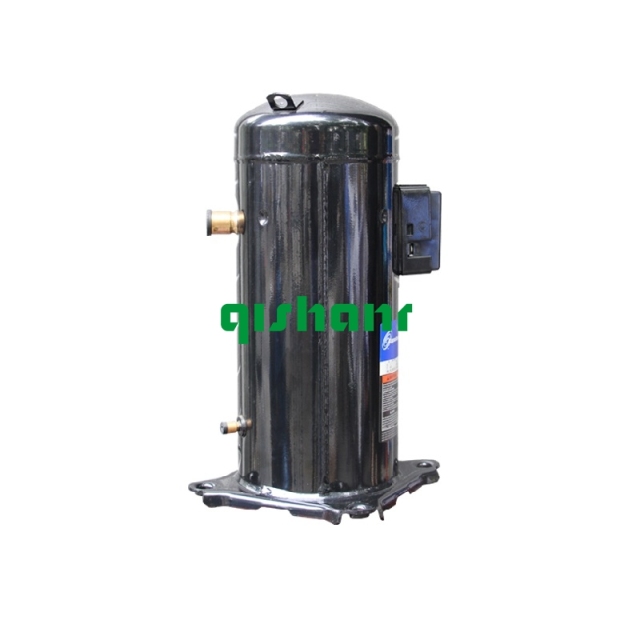

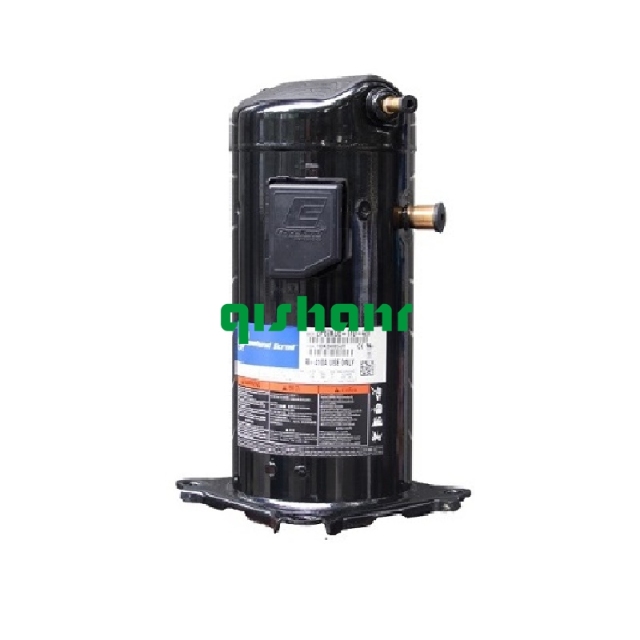

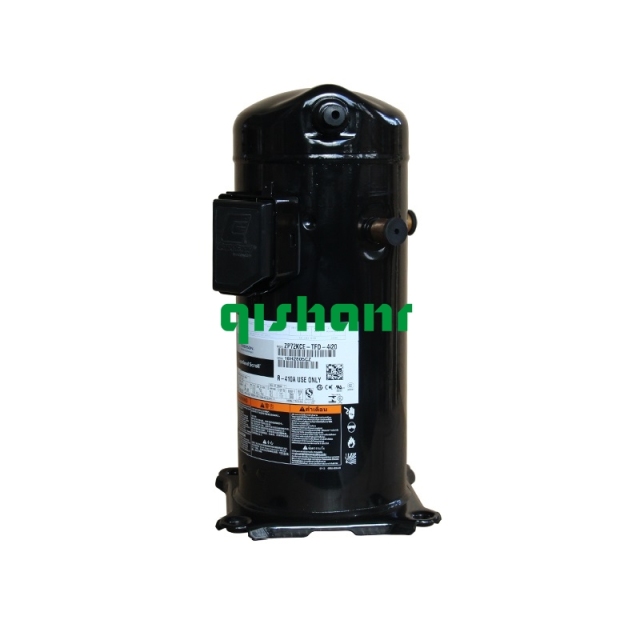

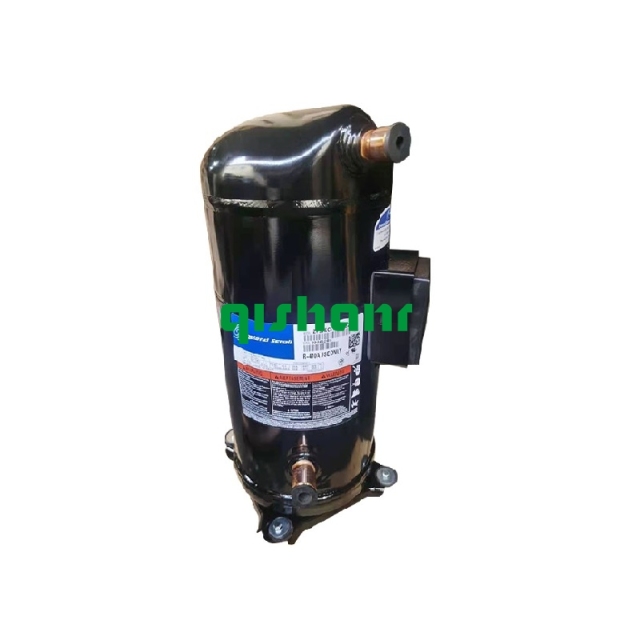

Copeland Scroll compressors are designed to deliver the highest performance in residential and commercial applications. Thanks to the widest selection of scroll compressors optimized for air conditioning and heating, it has never been easier to match all desired applications with the highest efficiency and reliability.
|
Model |
ZP104KCE-TF5-250 |
|
|
Nominal (HP) |
9.0 |
|
|
Refrigeration Type |
R410A |
|
|
Capacity |
(W) |
31000 |
|
(Btu/h) |
106000 |
|
|
Voltage |
200-230V ; 60Hz |
|
|
Input Power (W) |
9380 |
|
|
Current (A) |
27.2 | |
|
COP (W/W) |
3.31 |
|
|
EER (Btu/Wh) |
11.3 | |
|
Displacement (cc/ Rev.) |
96.4 | |
|
Oil Quantity (l) |
2.51 |
|
|
Net Weight (Kg) |
48.0 |
|
|
LRA (A) |
240 |
|
|
Sound Pressure (dBA) |
77.0 |
|
|
Application |
Air Conditioning |
|
