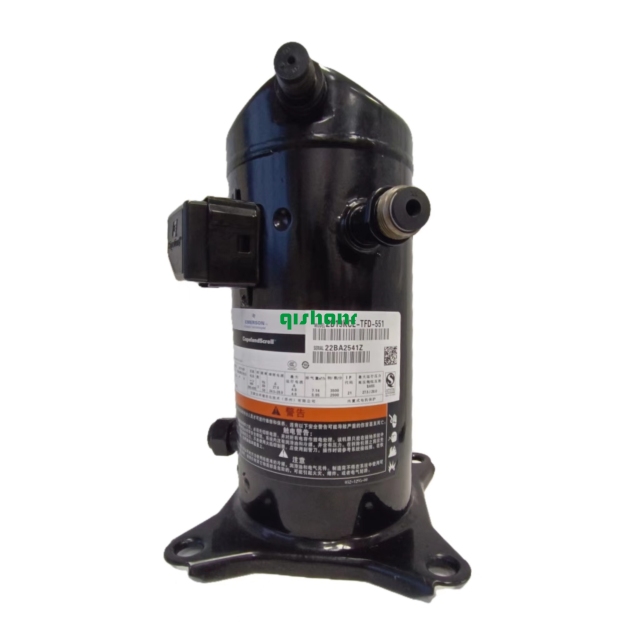

The Copeland Scroll refrigeration compressor family is designed for superior efficiency and performance for medium temperature applications.
In medium temperatures, where larger coils, evaporator fans and other components may be needed to meet AWEF targets, the efficiency of Scroll technology alone will often get the job done.
Compared to its hermetic reciprocating counterparts, Copeland Scroll is simpler to incorporate into new designs without additional engineering, development and design costs.
• Multi-Refrigerant Approved
• Superior Liquid Handling Capability
• Excellent Isentropic Efficiency
• Compact, Lightweight and Durable
• Low Sound & Vibration from Smooth Scroll Movement
• Approved for Medium Temperature Refrigeration Applications
• Approved for Medium Temp Refrigeration
|
Model |
ZB15KQ-TFD-558 |
|
|
Nominal (HP) |
2.0 |
|
|
Refrigeration Type |
R22 |
|
|
Voltage |
380-420V ; 50Hz |
|
|
Displacement (m³/h) |
5.9 |
|
|
LRA (A) |
24.5~26 |
|
|
RLA (A) |
4.3 |
|
|
MCC (A) |
6.0 |
|
|
Oil Quantity (l) |
1.18 |
|
|
|
N.W. |
23 |
|
G.W. |
26 |
|
|
Dimensions (mm) |
L. |
242 |
|
W. |
242 |
|
|
H. |
383 |
|
|
Application |
Coldroom ; Medium temperature refrigeration |
|
