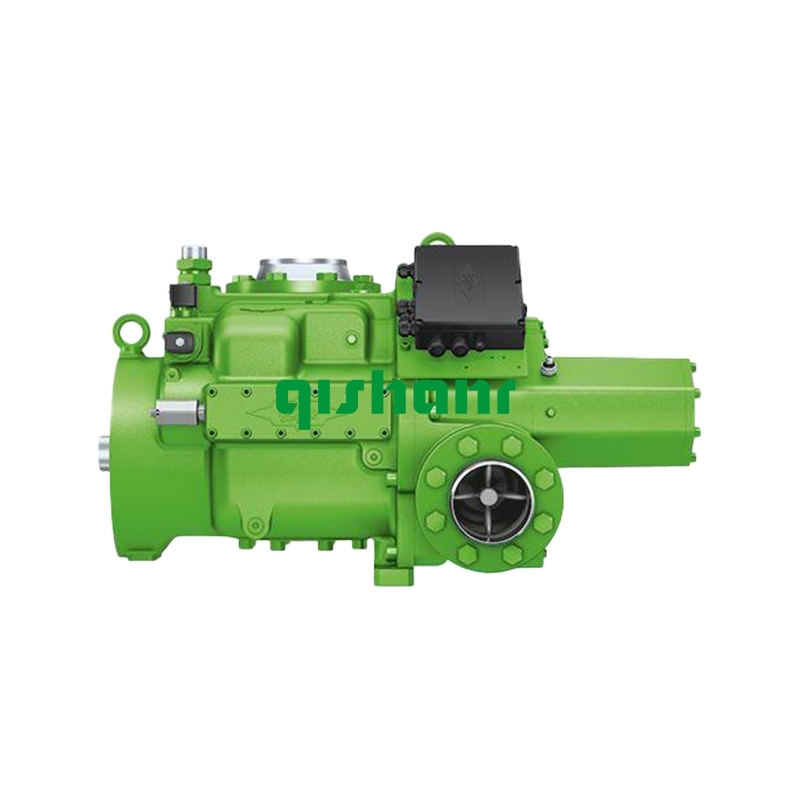

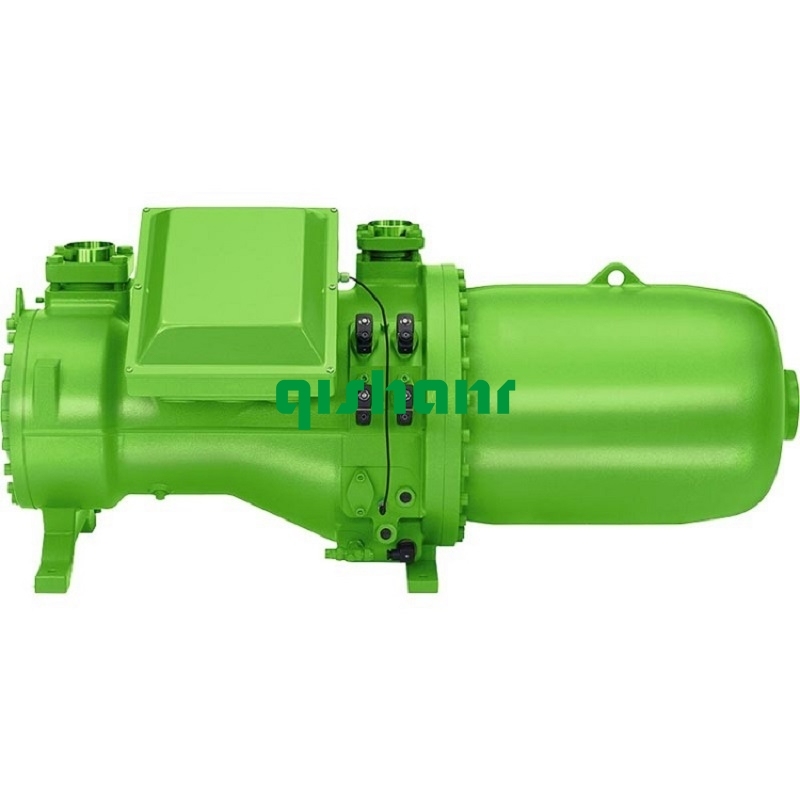

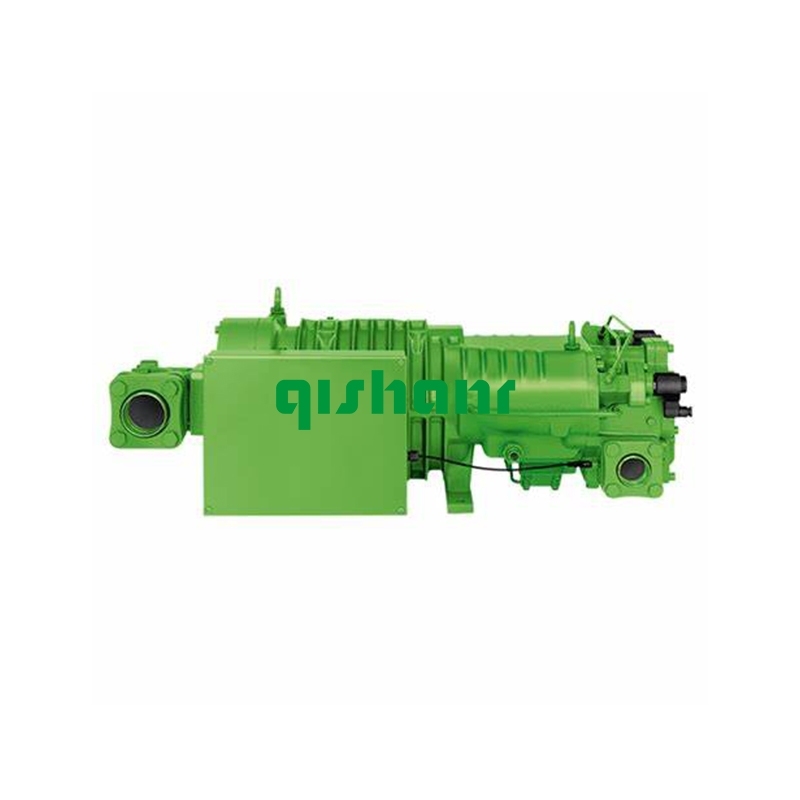

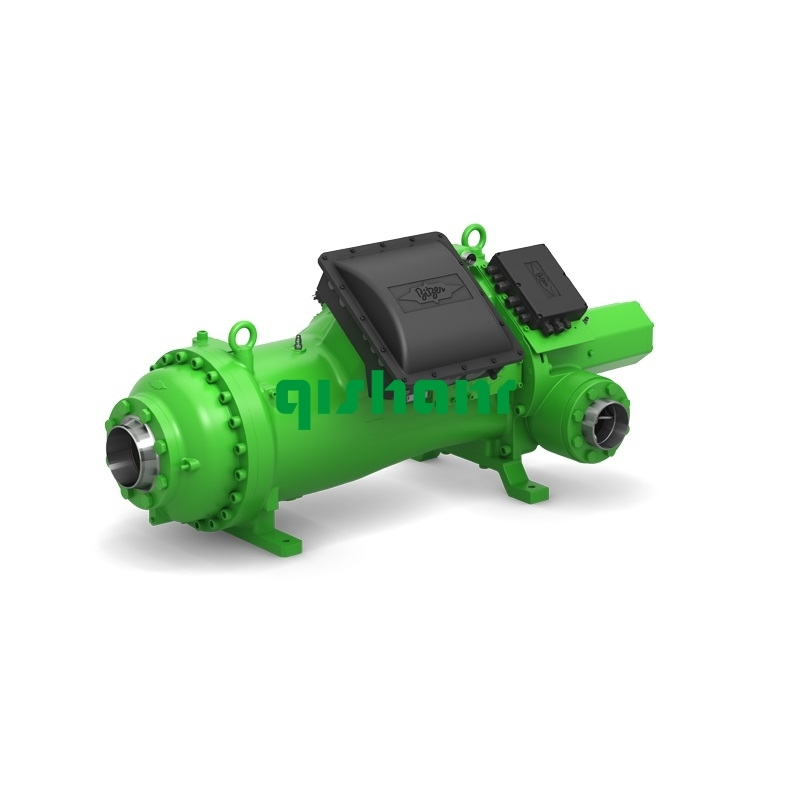

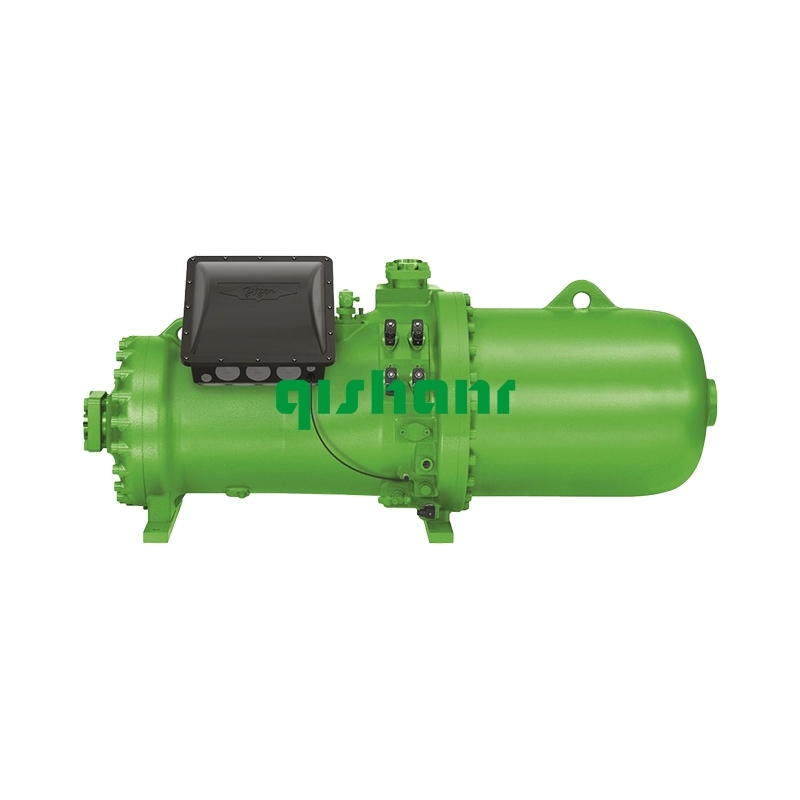

Bitzer Screw compressor CSH6553-50Y

Item No.: CSH6553-50Y
Refrigerant: R134A,R407C
Displacement 50/60Hz(m³/h): 137/165
Motor Connection: 400V/3/50Hz ; 460V/3/60Hz
Application: AC
Description

Product Discription

With the extended ES series BITZER now provides the innovative scroll technology for applications in airconditioning systems and heat pums. The compressor are characterised by innvative technical features and extremely high energy efficiency.
The program consists of models with a rated motor power from 7.5 to 15 HP for the refrigerants R134A, R404A, R507A and R22.

Product Features

• Spirals of equal temperature level achieved by a special cooling process (patented)-thereby
• High capacity and efficiency
• Simple and robust design
• Suction gas cooled motor
• Low sound and vibration levels
• Small space requirement,low weight and easy installation
• Fully hermetic due to welded shell
• Terminal box enclosure class IP54

Product Specification

Model

CSH6553-50Y

Refrigerant

R134A,R407C

Motor Connection

400V/3/50Hz ; 460V/3/60Hz

Displacement 50/60Hz (m³/h)

137/165

Oil charge (dm³)

9.5

Application

AC
