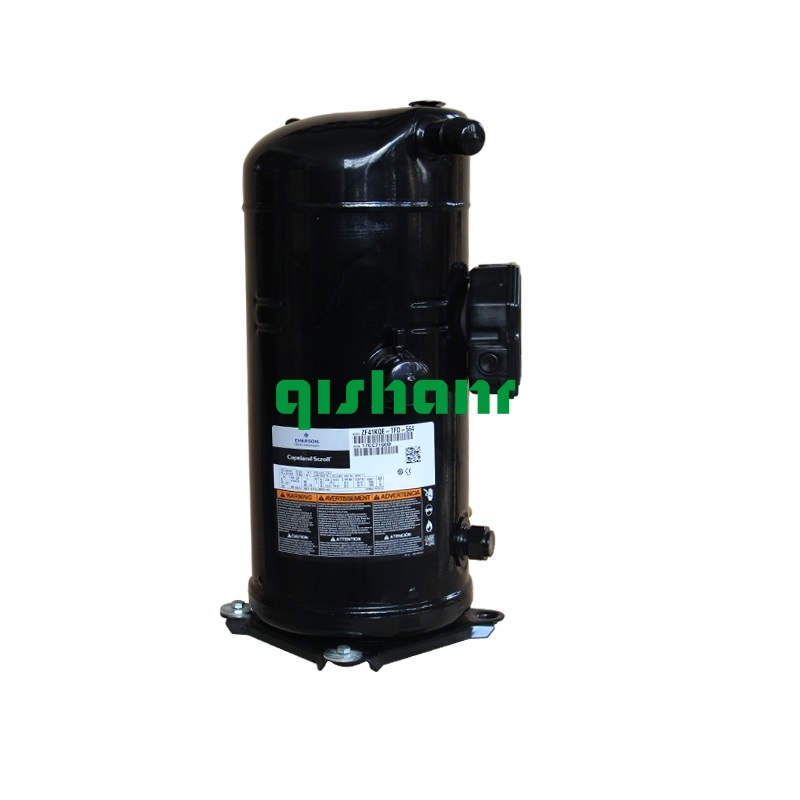

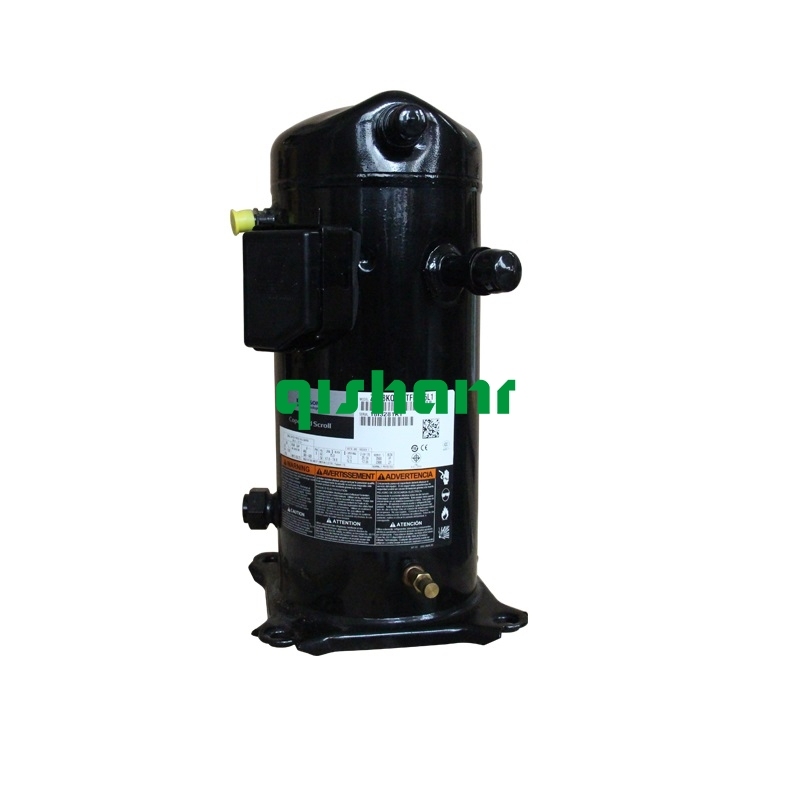

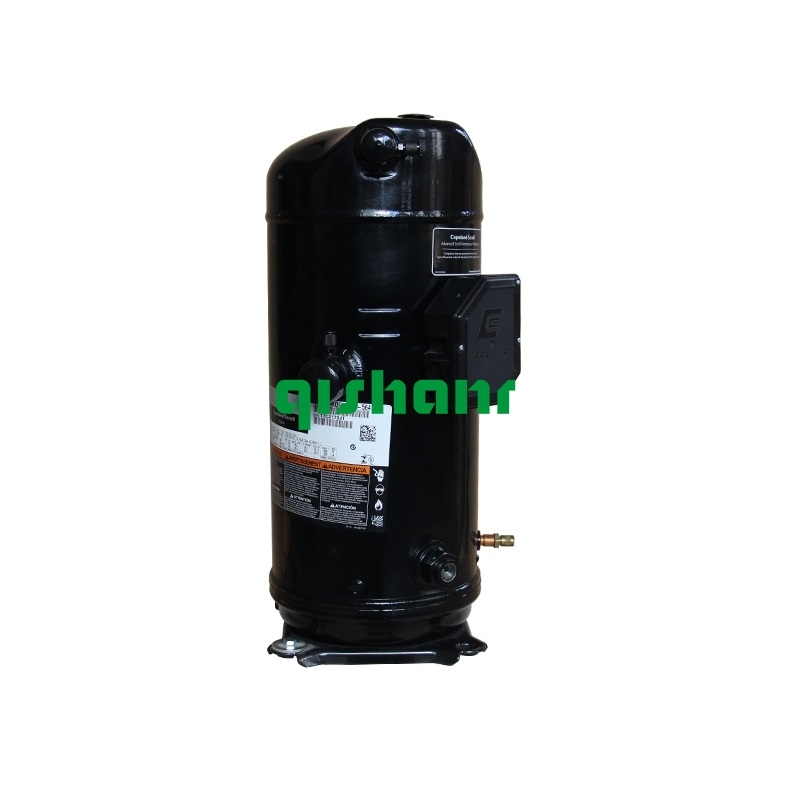

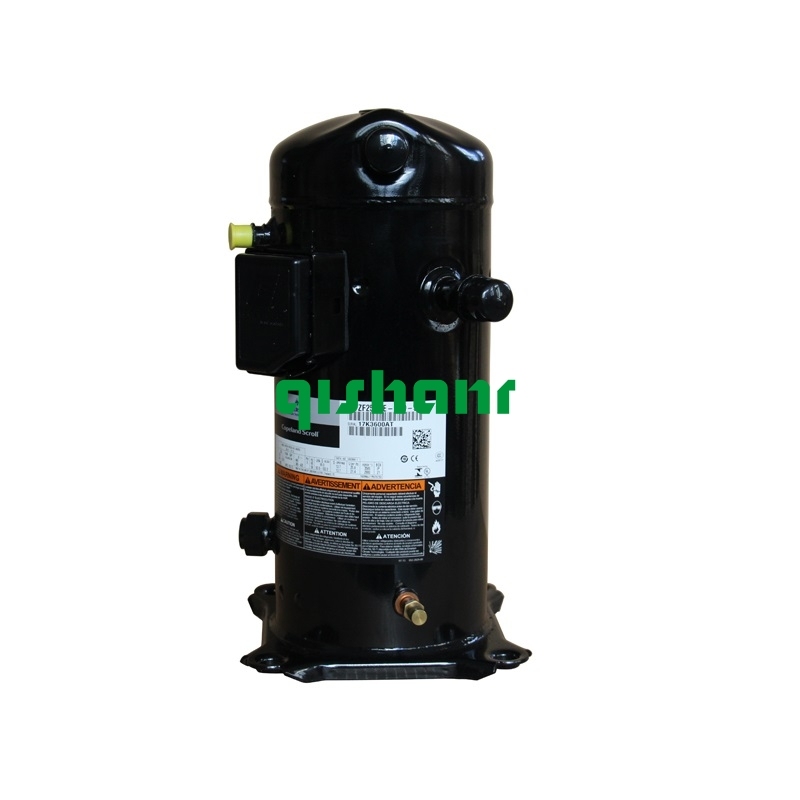

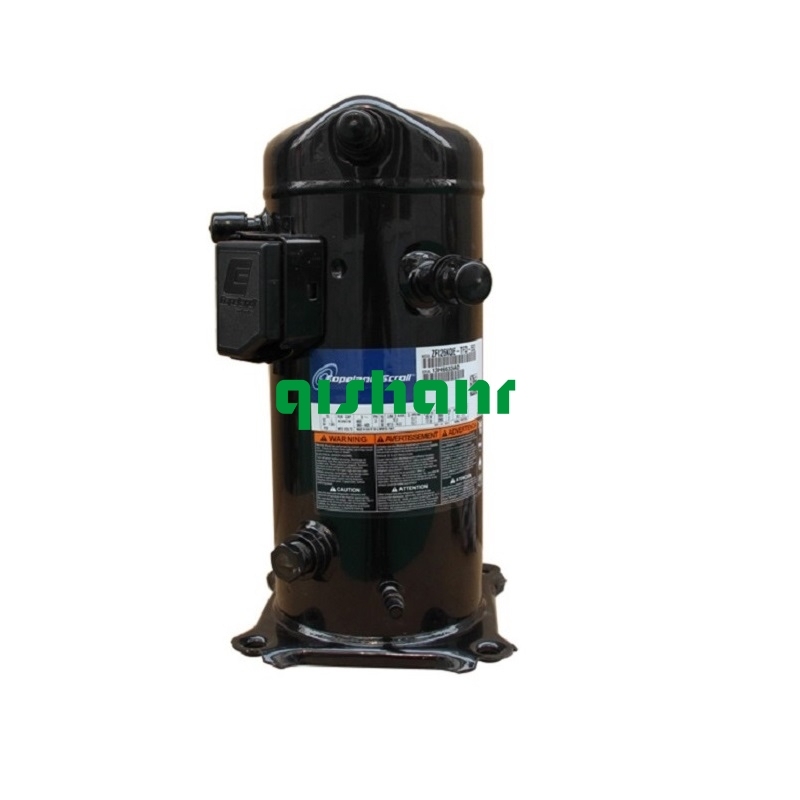

5HP Copeland Refrigeration Compressor ZF15K4E-TFD-551

Item No.: ZF15K4E-TFD-551
Refrigeration Type : R404A
Displacement (m³/h) : 14.4
LRA (A) : 64.0
Voltage : 380-420V ; 50Hz
Phase : 3
Application: Supermarket;
                    Reach-In/Walk-in Freezer;
                    Environmental Chambers;
                    Indust
Description

Product Description

The Copeland Scroll refrigeration compressor family is designed for superior efficiency and performance for medium temperature applications.
In medium temperatures, where larger coils, evaporator fans and other components may be needed to meet AWEF targets, the efficiency of Scroll technology alone will often get the job done.
Compared to its hermetic reciprocating counterparts, Copeland Scroll is simpler to incorporate into new designs without additional engineering, development and design costs.

Product Features

• Multi-Refrigerant Approved
• Superior Liquid Handling Capability
• Excellent Isentropic Efficiency
• Compact, Lightweight and Durable
• Low Sound & Vibration from Smooth Scroll Movement
• Approved for Medium Temperature Refrigeration Applations
• Approved for Medium Temp Refrigerationic

Product Specification

Model

ZF15K4E-TFD-551

Nominal (HP)

5.0

Refrigeration Type

R404A

Voltage

380-420V ; 50Hz

Displacement (m³/h)

14.4

LRA (A)

64.0

MOC (A)

10.0

MCC (A)

12.0

Oil Quantity (l)

1.90

Net Weight (Kg)

39.0

Dimensions (mm)


L.

246

W.

257

H.

442

Application

Supermarket;
Reach-In/Walk-in Freezer;
Environmental Chambers;
Industrial/Medical Applications;
Transportation.
