Frascold Reciprocating Compressors

Product Line Overview

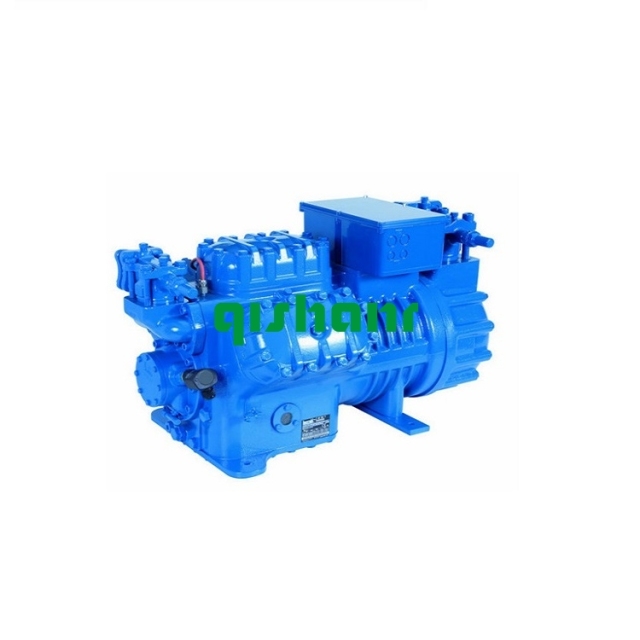

Standard semi-hermetic reciprocating compressors range from 0.5 to 80 Hp and are designed with performance, reliability and efficiency in mind. All models are also compatible with our revolutionary new Reduced Suction Head (RSH) capacity control system and are suitable for variable frequency drive use.


• Advanced protection system
• Space-saving compact footprint
• High efficiency and low noise
• HFCs and HFOs refrigerants
• Hydrocarbons and Ammonia refrigerants
• R744: Transcritical & Subcritical CO2 models
• Two-stage models available
• All models VFD compatible
• Optional RSH capacity control
• Most models ASERCOM certified
• 2 year warranty standard

For standard refrigerants
Wide range of models with 2, 4, 6 or 8 cylinders, displacement from 4 to 239 m3/h [50Hz] and nominal power from 0.5 to 80 Hp.
The compressors can be used with all standard refrigerants like HFC, HCFC based refrigerants and HFO low-GWP refrigerants, for a wide range of applications, single and multi-compressor and cascade systems. All models can operate with VFD.
The main features are high efficiency, robust construction, low noise levels and small dimensions. The applied protection systems are state of the art. Finally, a long list of accessories further enhances their versatility.
The range includes also: ATEX Compressors, Two-stage compressors, Twin compressors and Open type compressors.
The performance of the majority of models is ASERCOM certified.
Standard series

• Models: 71
• Displacement: 3.95 - 239 m3/h
• Motor Power: 0.5 - 80 HP

Standard single-phase series

• Models: 19
• Displacement: 3.95 - 19.1 m3/h
• Motor Power: 0.5 - 3 HP

Two-stage series

• Models: 7
• Displacement : 25.2 - 102.9 m3/h
• Motor Power: 5 - 30 HP

ATEX series

• Models: 72
• Displacement: 3.95 - 239 m3/h
• Motor Power: 0.5 - 80 HP
