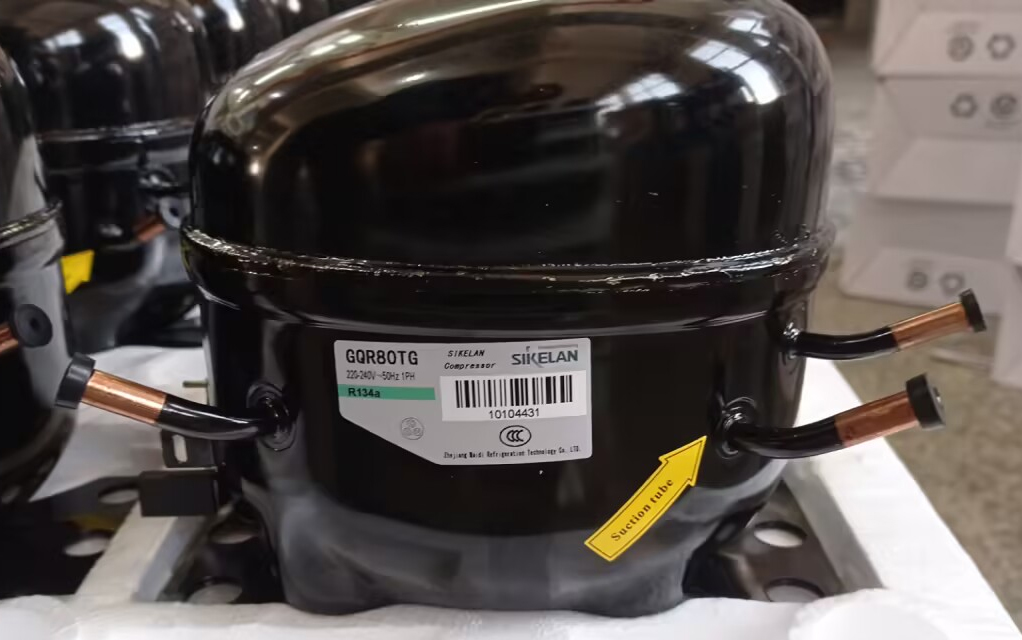

The SIKELAN GQR80TG, a 1/4+ HP medium/high back pressure model using R134a refrigerant, with a displacement of 8.0-8.1 cm³, and compatible with 220-240V/50Hz single-phase power, has become a mainstay in the commercial cold cabinet sector. Its success relies not only on impressive spec sheet numbers but also on the sophisticated engineering balance achieved within a confined space.
1. Pump Assembly: Space Optimization in a Small Displacement
-
Displacement & Load: 8.0-8.1 cm³ displacement, driving cold cabinets from 220 to 400 liters.
-
Cylinder Block Design: Optimized for heat dissipation, chip evacuation, and spatial efficiency.
-
Motor Type: CSIR (Capacitor Start, Induction Run) motor — eliminates both start and run capacitors, reducing electrical failure points and saving internal wiring space.
2. Oil Circulation: Lubrication System Design
-
Oil Charge: 380–420 ml of POE oil.
-
Oil Pump Type: Centrifugal oil pump with a spiral oil groove — uses crankshaft rotation to fling oil to all friction pairs.
-
Key Advantage: Simple construction with reliable oil supply across different mounting angles (suction tube upward or downward).
3. Electrical System: CSIR Motor Logic
-
Starting Mechanism: Relies on a PTC thermistor or current relay to provide high starting torque.
-
Running Mode: After startup, the main winding operates alone; the start winding is disconnected.
-
Trade-off: Lower efficiency compared to PSC or capacitor-run motors, but offers simple construction and low failure rate.
-
Best Use Case: Stable-duty applications like display cabinets and beer coolers with infrequent start-stop cycles.
4. Sealing & Vibration Damping: Noise Reduction Design
-
Tube Routing: Suction and discharge tubes are precisely bent to reduce vibration transmission.
-
Isolation: Internal spring suspension structures isolate the pump assembly from the outer shell.
-
Pulsation Control: Suction and discharge buffer chambers suppress pressure pulsations, significantly reducing operational noise.
5. Materials & Workmanship: Precision from Casting to Finished Product
-
Critical Components: Cylinder, piston, and crankshaft — their machining precision directly determines cooling efficiency and service life.
-
Quality Foundation: Market recognition is built on machining accuracy, assembly techniques, and rigorous inspection standards.
-
Industry Reality: Identical designs can yield vastly different results depending on factory-level process control.
Summary
Every design element in the GQR80TG has a solid engineering basis — from groove angles and oil hole diameters to spring stiffness and preload — all validated through iterative testing. In commercial refrigeration, the best design is not the most complex, but the most stable and reliable. This 1/4 HP machine embodies decades of accumulated technical knowledge in refrigeration engineering.
